Filling line for CSD in PET bottles with capacity 14 000 bph for 0.5 L and 2.0 L. year 2003

Sold

SKU: 15102019

Filling line for CSD in PET bottles with capacity 14 000 bph for 0.5 L and 2.0 L.
Line is in a perfect working condition and still in operation. On request we can arrange line inspection on requested time and date.
Output of the line is 14 000 PET bottles per hour, based on the formats: 0,5 liters, and 2,0-liter PET as a main set, with specified PCO 1881 short neck with 28 mm diameter.

Technical details

  • Line capacity: 14 000 bph for 0.5 liter, 14 000 bph for 2.0 liter
  • Bottle sizes: 1.5 liter / 2.0-liter PET
  • Status of the line: Still in operation until January 2020
  • Used for filling: CSD
  • Cap type: PCO 28 mm (1881 Short neck)
  • Packages: Shrink Pack, Euro palette with tray
  • Conditions: Good, regularly serviced

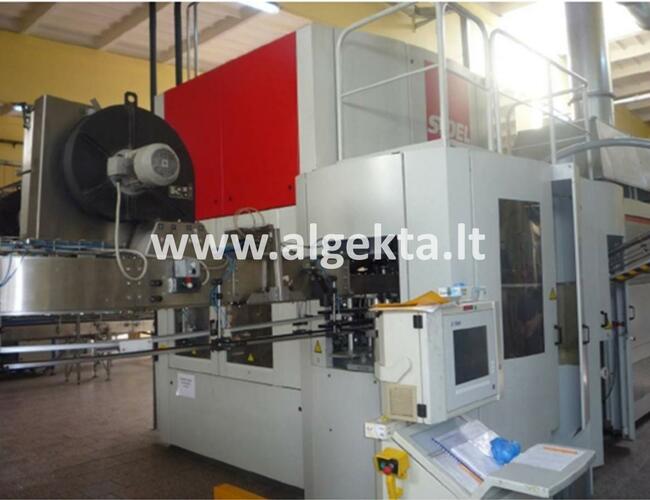

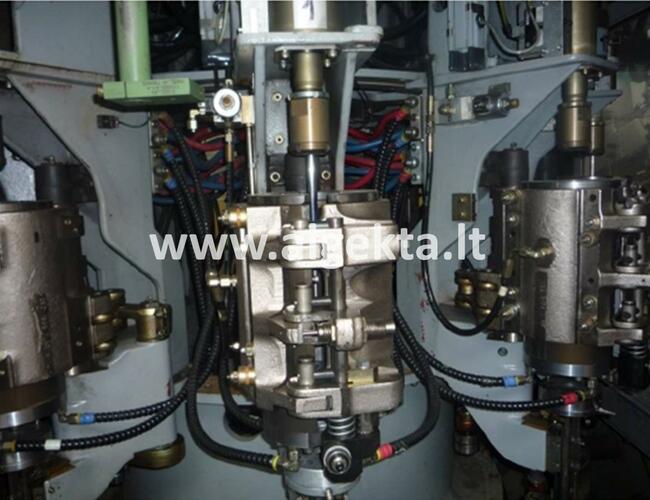

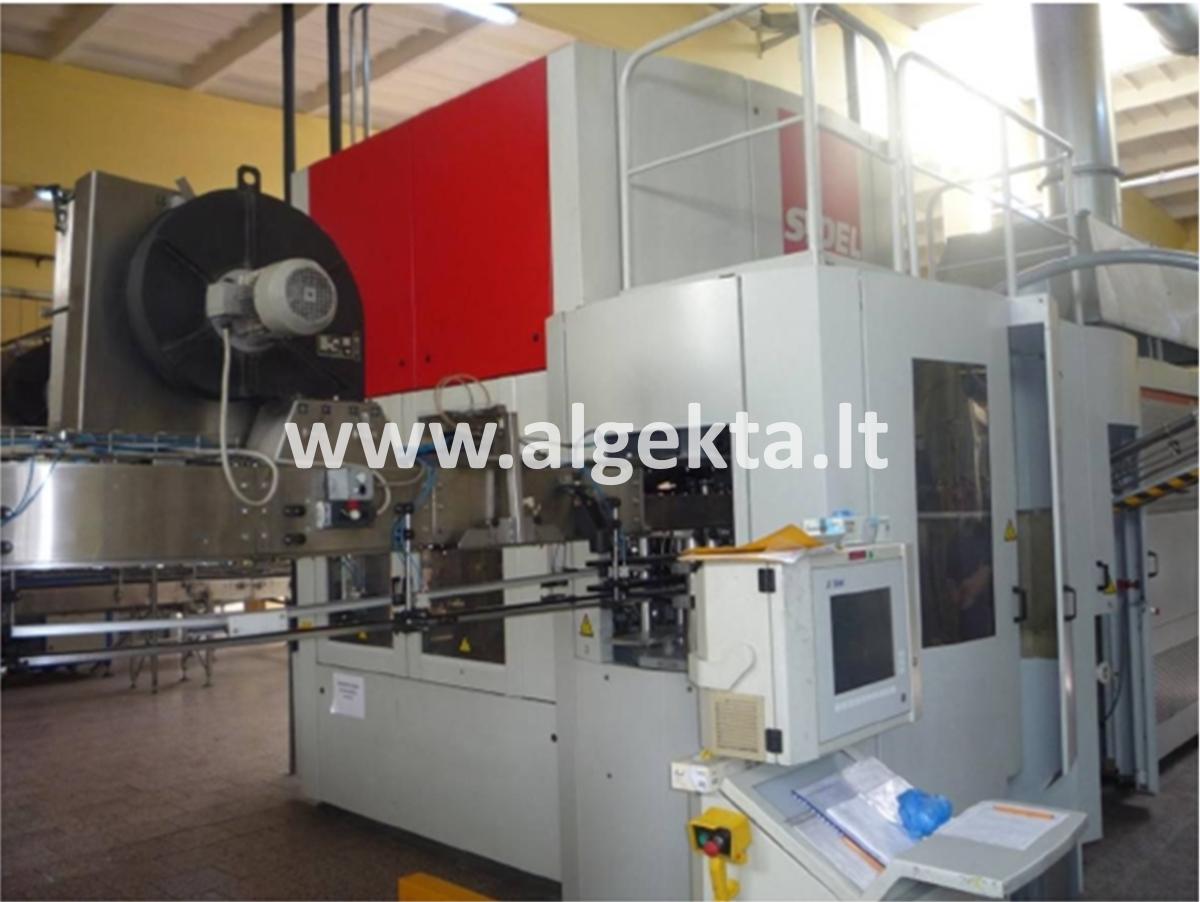

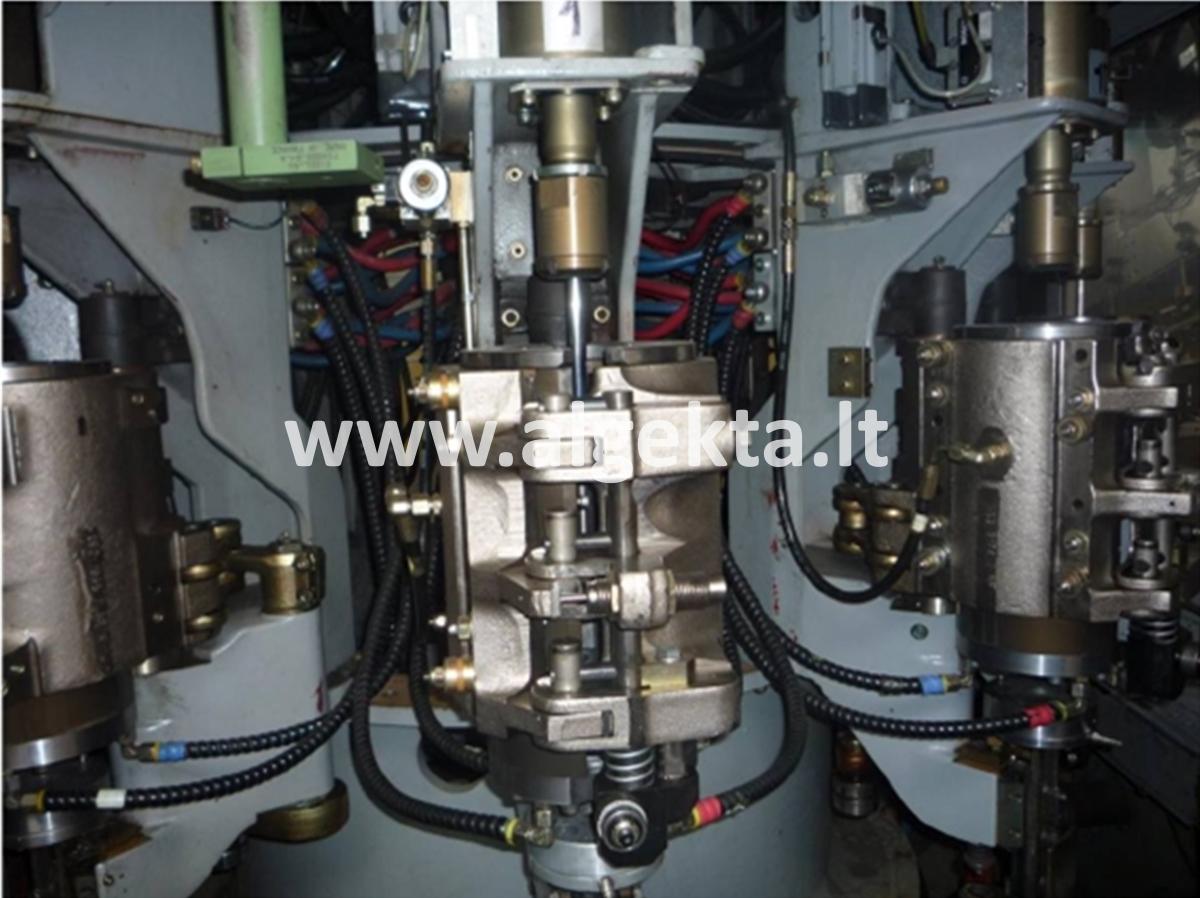

Blow molding machine:

  • Manufacturer: SIDEL
  • Type: SBO 10 Four
  • Manufacturing year: 2000
  • Bottle formats: 0.5 L – 2 L
  • Forms included: Yes (0.5 L and 2 L)
  • Other remarks: Chiller included, preforms hopper and feeder included

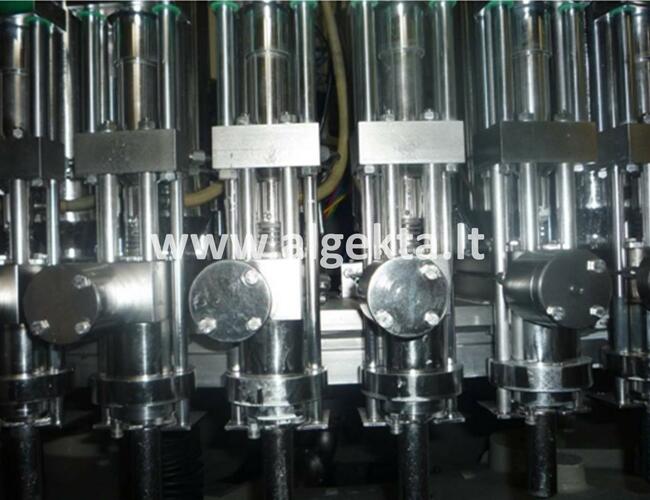

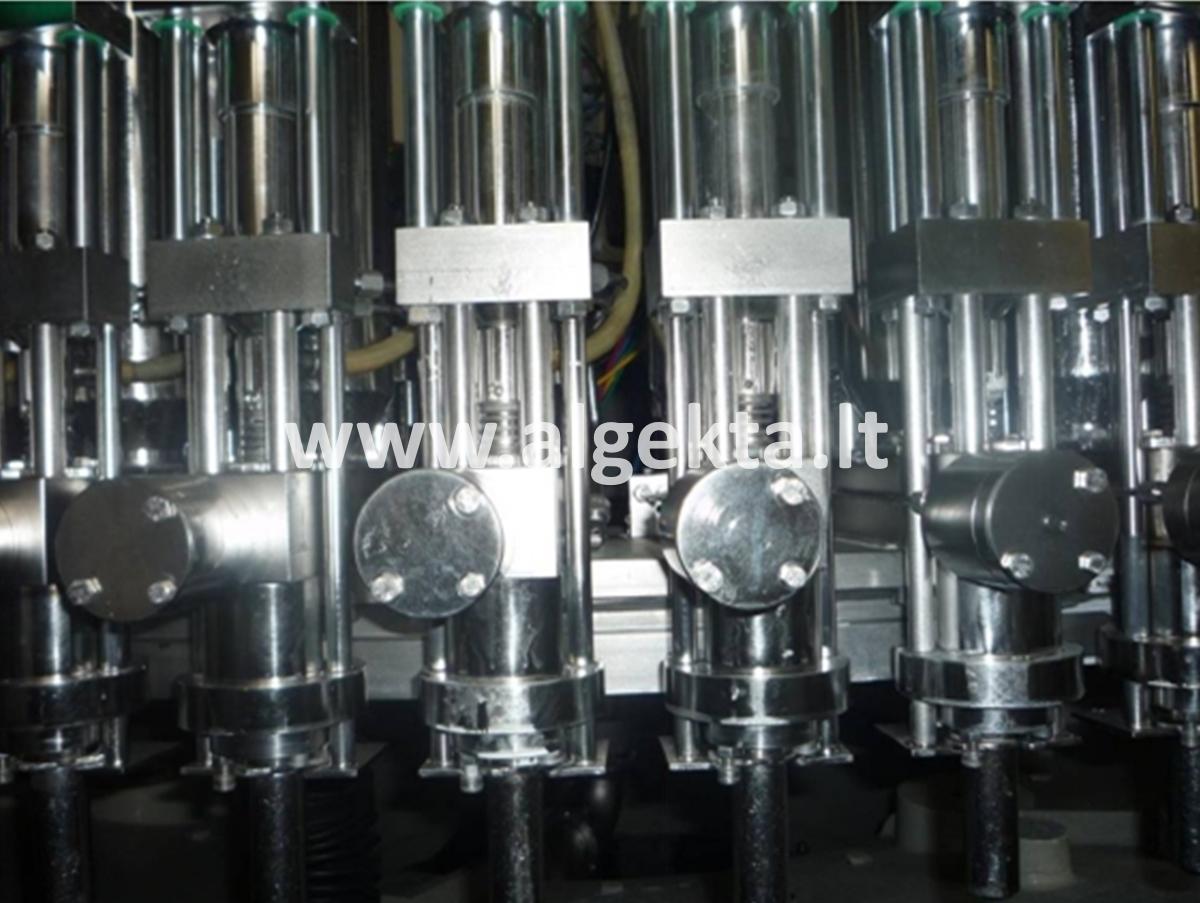

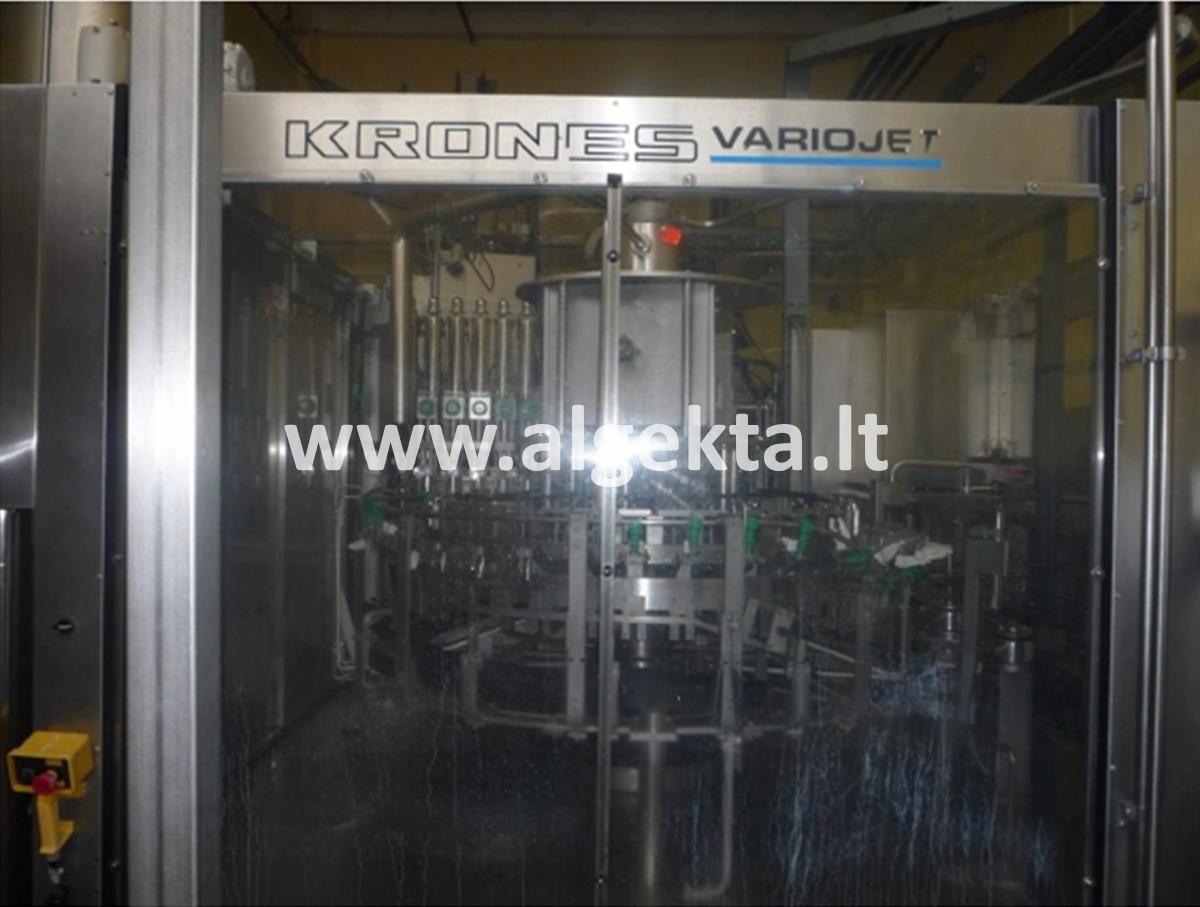

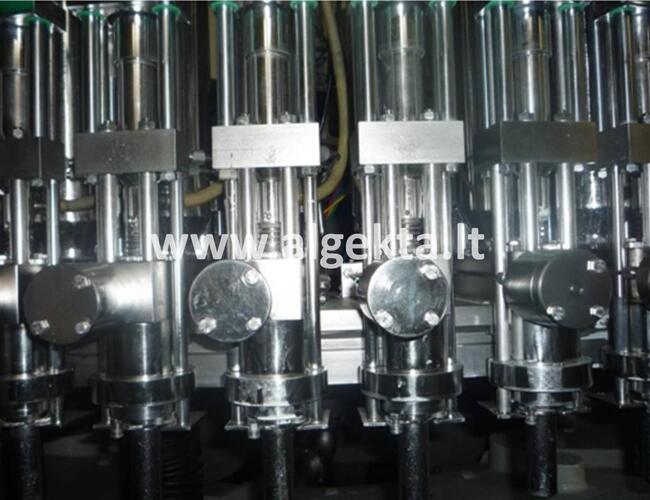

Rinser – Filler – Capper:

  • Manufacturer: KRONES
  • Type: VARIOJET
  • Year: 1999
  • Bottle formats: 0.5L – -2L PET
  • Number of filling positions: 40
  • Not in use because of SW problem. Can be repaired.
  • Number of filling valves: 80
  • Number of capping heads: 10
  • Capper: AROL
  • Cap type: PCO 28 mm (1881 Short neck)

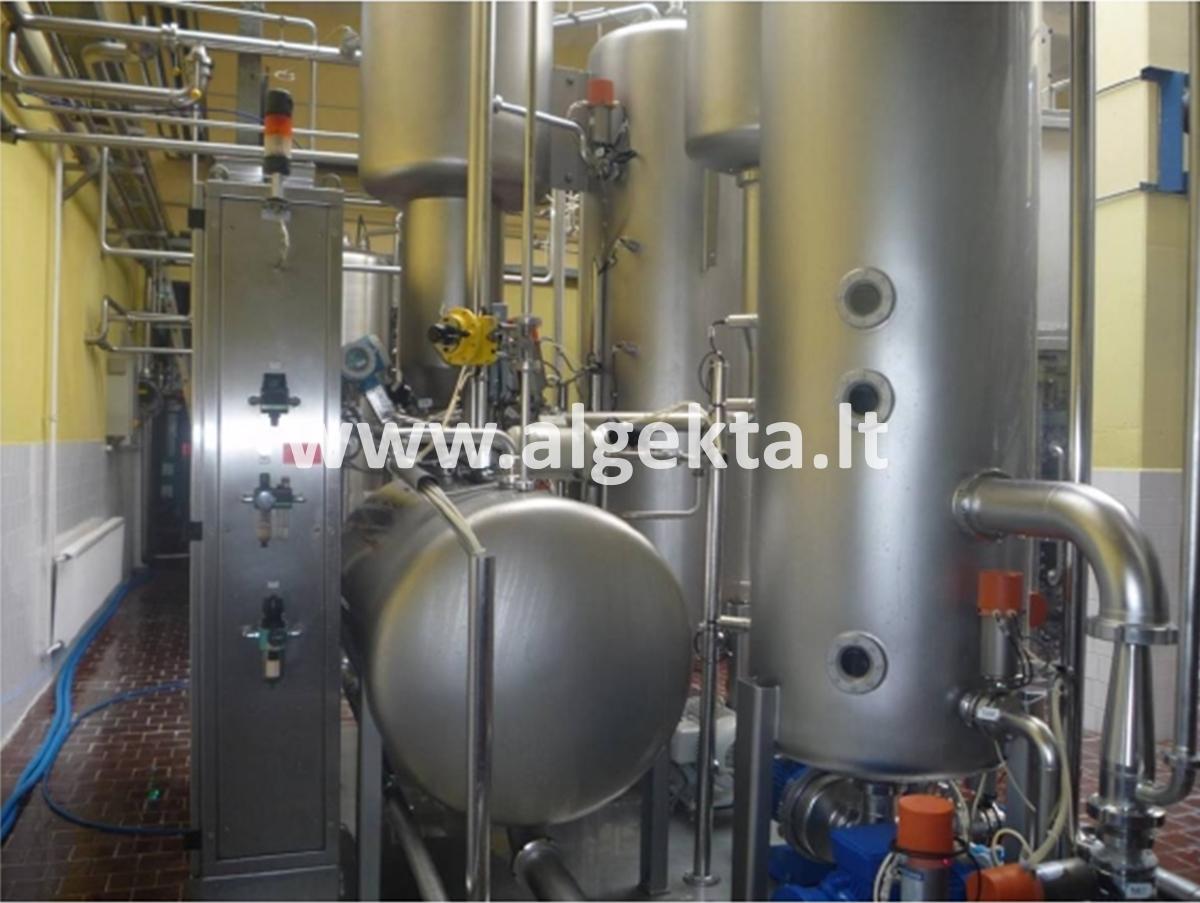

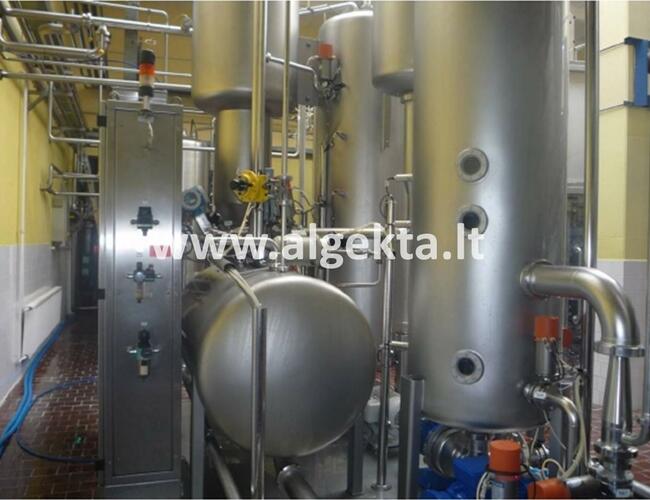

Mixer:

  • Manufacturer: KRONES
  • Type: 536-274
  • Year: 1999
  • Capacity: 30 000 L / hour

Labeling machine:

  • Not Included in the scope of delivery

Date coder:

  • Manufacturer: VIDEOJET
  • Type: 1520
  • Year: 2015

Shrink wrapper:

  • Manufacturer: SMI
  • Type:Flexi SK 500F
  • Year: 2013
  • Try possibility: No
  • Format: 2×3 for 2.0- liter, 4×3 for 0.5- liter

Carry handle applicator:

  • Manufacturer: CEFMA
  • Type: CH120
  • Year: 2015

Palletizer:

  • Manufacturer: KETTNER
  • Type: PRESSANT
  • Year: 1999
  • Pallet dimensions: Euro standard (1200 x 800 mm)
  • Dusseldorf (600 x 800 mm)

Pallet wrapper:

  • Manufacturer: PM Pragometal
  • Type: Rotomatic
  • Year: 1999

Conveyor systems:

  • Air conveyors: approx. 75 m.
  • Bottle conveyors: approx. 35 m.
  • Pack conveyors: approx. 18 m.
